JDF橡膠減震墊介紹及運用注意要素有哪些？
JDF橡膠減震墊介紹及運用注意要素有哪些？
Introduction and application of JDF rubber cushion what are the key elements to pay attention to?

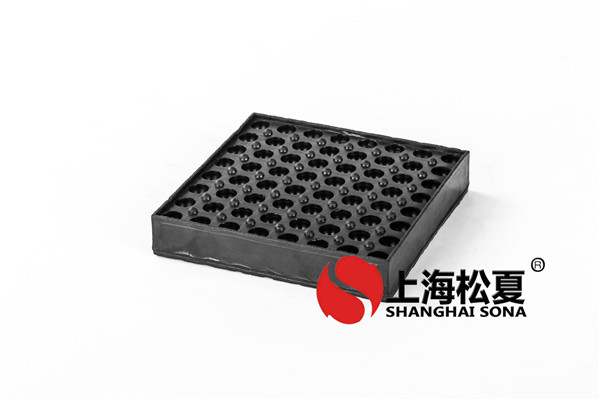

JDF型橡膠減震墊基本塊尺寸為170mm*170mm*20mm，豎向負荷范圍2.0～9.0KN/塊，本來就有頻率8.4～10.0fo(Hz)，當設備較輕時，根據(jù)負荷大小，可將橡膠減震墊基本塊分割成1/2和1/4小塊運用，其豎向準許負荷離別為基本塊準許負荷的1/2和1/4。需下降本來就有頻率，提升減震效果，可將減震墊疊加串連運用，但準許負荷仍為基本塊的準許負荷。分割后的減震墊小塊為擔保牢穩(wěn)，僅限于兩層運用。設備覺得合適而運用減震墊時，設橡膠減震墊的安裝飾點綴數(shù)不少于四個。JDF型橡膠減震墊在串連時的變型量為單層變型量乘以串連層數(shù)。上海松夏橡膠減震器廠出產SD型橡膠減震墊、JDF型橡膠減震墊、JSD型橡膠減震器、BE型橡膠減振器、RM型橡膠減震器、等減振降噪產品。
JDF rubber cushion basic block size is 170mm*170mm*20mm, vertical load range 2.0 ~ 9.0kn/block, there is a frequency of 8.4 ~ 10.0fo(Hz), when the equipment is light, according to the load size, the rubber cushion basic block can be divided into 1/2 and 1/4 small pieces, the vertical allowable load separation for the basic block allowable load 1/2 and 1/4.To reduce the frequency of the original, enhance the effect of shock absorption, shock absorption pad can be stacked serial application, but the allowable load is still the allowable load of the basic block.After the partition of the shock cushion small pieces for security firm, limited to the use of two layers.When the equipment feels suitable to use the shock absorbers, the number of mounting decorations with rubber shock absorbers shall not be less than four.The variation of JDF rubber cushion in serial connection is the variation of single layer times the number of serial layers.Shanghai songxia rubber shock absorber factory produces SD rubber shock absorber, JDF rubber shock absorber, JSD rubber shock absorber, BE rubber shock absorber, RM rubber shock absorber, etc.
